Sm₂Co₁₇ · High energy
High-energy SmCo magnets
High-energy Sm₂Co₁₇ permanent magnets for compact motors, actuators and precision systems.
XGS 35H / 34H / 33HA / 33HB
Products / Samarium cobalt
Materials for
your magnetic design.
Four product families. Defined geometries. Published grade data to guide your next engineering decision.
Find your product family
4 families · Sm₂Co₁₇ materials and drawing-based assemblies
Search and application filters
4 product families
Sm₂Co₁₇ · Extreme temperature
High-temperature SmCo magnets
Specialist samarium cobalt grades for high-temperature environments.
XGS 26-T550 / 25-T500
Sm₂Co₁₇ · Precision stability
Temperature-compensated SmCo
Low-temperature-coefficient SmCo magnets for systems where magnetic-field stability matters.
XGS 22-TC-T350 / 18-TC-T500
Drawing-based components
Custom magnetic assemblies
Custom SmCo magnets and magnetic assemblies developed around your application.
Drawing-based magnetic solutions
No matching product families
Clear a filter or search by the documented grade name.
Material data
Published SmCo grade finder
Search ten documented grades. Compare up to three grades and download the visible records, with units and test temperatures included.
Filter grades and test conditions
Values apply at the stated test temperature. Scroll wide tables horizontally.Swipe the table sideways for all properties. The grade stays visible; each row has its own test temperature.
| Compare | Grade | Test temperature °C | Remanence, Br T | Intrinsic coercivity, Hcj kOe | Energy product, (BH)max MGOe | Published max. temperature °C |
|---|---|---|---|---|---|---|
| XGS 35H | 20 | 1.18–1.21 | ≥25 | 33–35 | 350* | |
| XGS 34H | 20 | 1.16–1.20 | ≥25 | 32–34 | 350* | |
| XGS 33HB | 20 | 1.14–1.16 | ≥25 | 31–33 | 350* | |
| XGS 33HA | 20 | 1.13–1.15 | ≥25 | 30.5–32 | 350* | |
| XGS 32H | 20 | 1.11–1.145 | ≥25 | 30–32 | 350* | |
| XGS 30H | 20 | 1.08–1.12 | ≥25 | 28–30 | 350* | |
| XGS 26-T550 | 20 | 0.93–1.02 | ≥25 | 23–26 | 550 | |
| XGS 26-T550 | 550 | 0.65–0.76 | 5.0–8.0 | 9–11 | 550 | |
| XGS 25-T500 | 20 | 0.95–1.03 | ≥25 | 22–25 | 500 | |
| XGS 25-T500 | 500 | 0.65–0.80 | 6.6–9.0 | 10–13 | 500 | |
| XGS 22-TC-T350 | 20 | 0.91–0.96 | ≥18 | 19–22 | 350 | |
| XGS 18-TC-T500 | 20 | 0.85–0.91 | ≥18 | 16–18 | 500 |
No matching grade records
Change the test temperature or clear your search to broaden the results.
Specification confirmation H-series maximum temperature differs between supplied documents: 350 °C in the grade table and 300 °C for XGS 35H in the English brochure. Request the current grade specification before design approval.
Published maximum temperature is not a universal operating guarantee. Geometry, reverse field, load line and exposure conditions determine suitability. Br = remanence; Hcj = intrinsic coercivity, not Hcb.
Custom components
Geometry follows your drawing
Discuss dimensions, tolerances, magnetization direction and assembly requirements. Images show representative Hangda products.

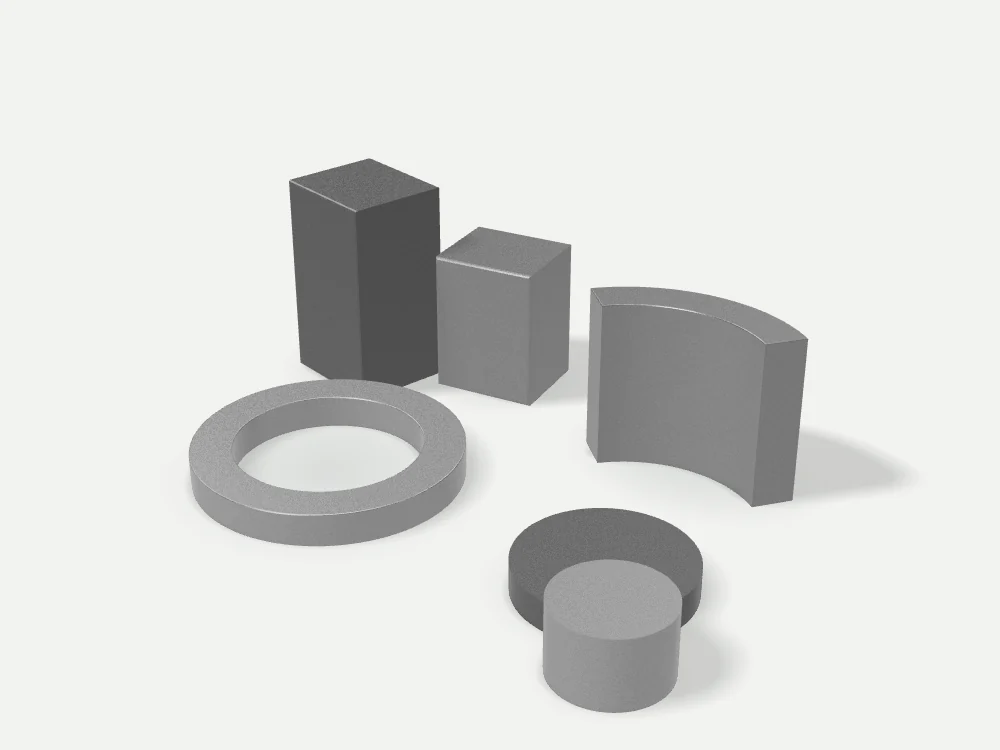

Blocks & discs

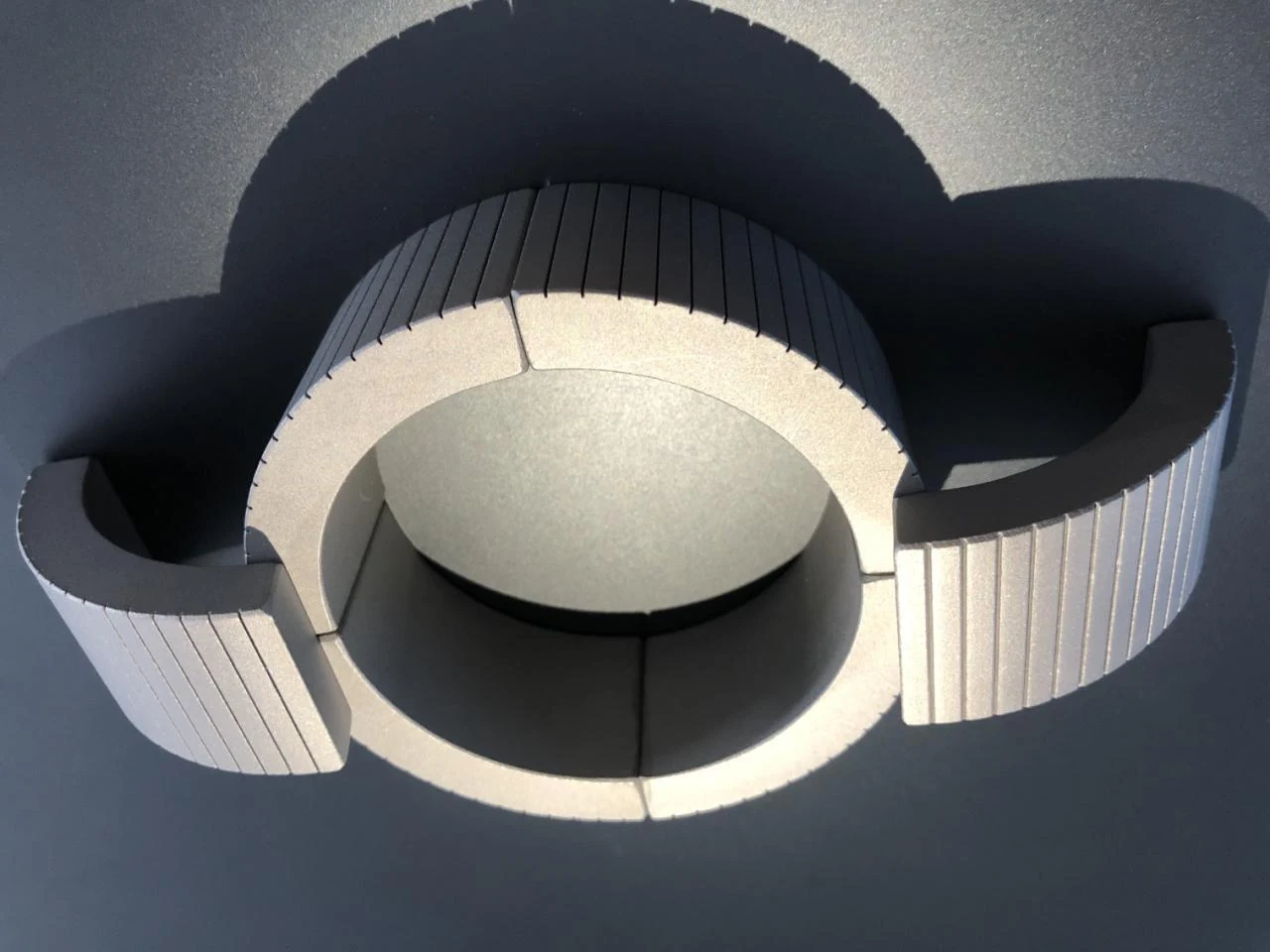

Arcs & segments
Rings & cylinders

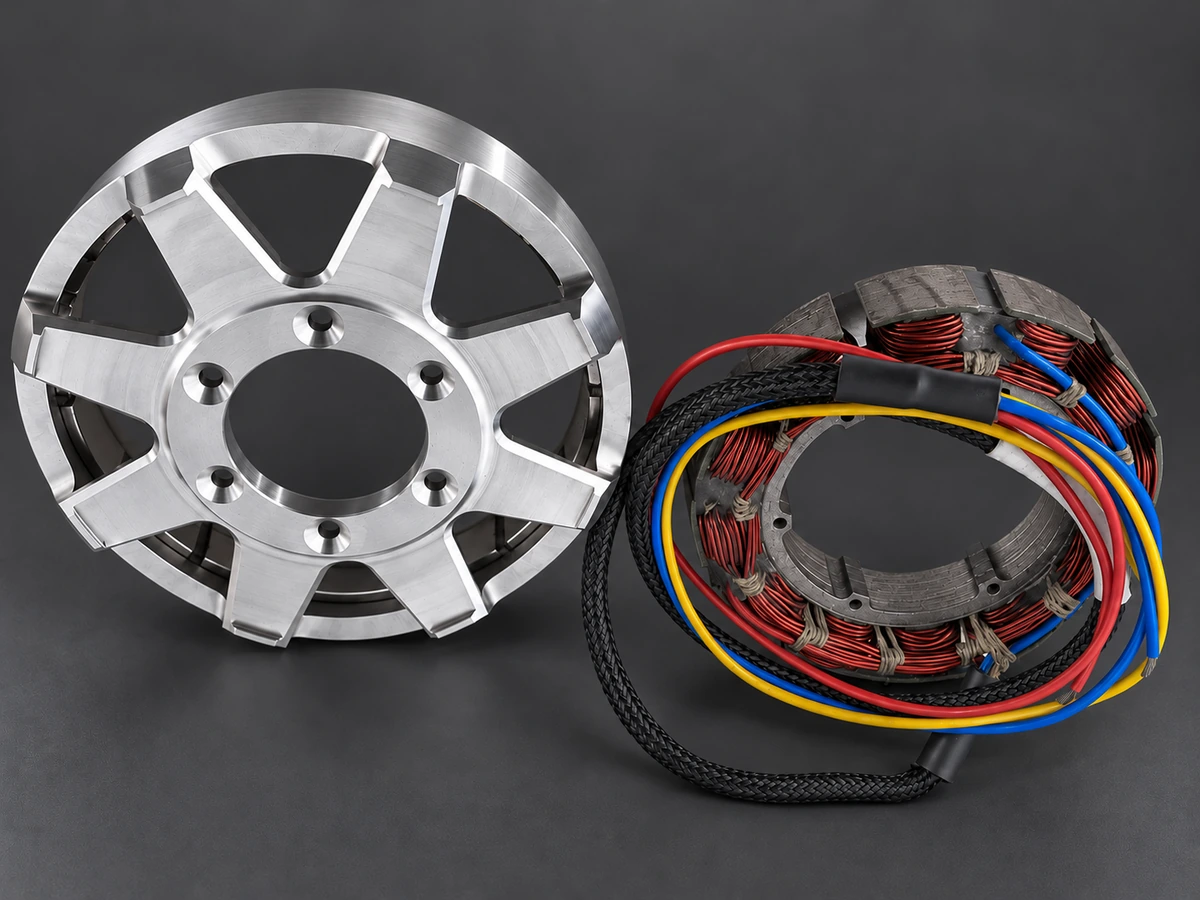

Magnetic assemblies
Drawing-defined forms
More than a standard block or ring
The supplied brochures and company catalogue show thin plates, slotted discs, bores and profiled segments.

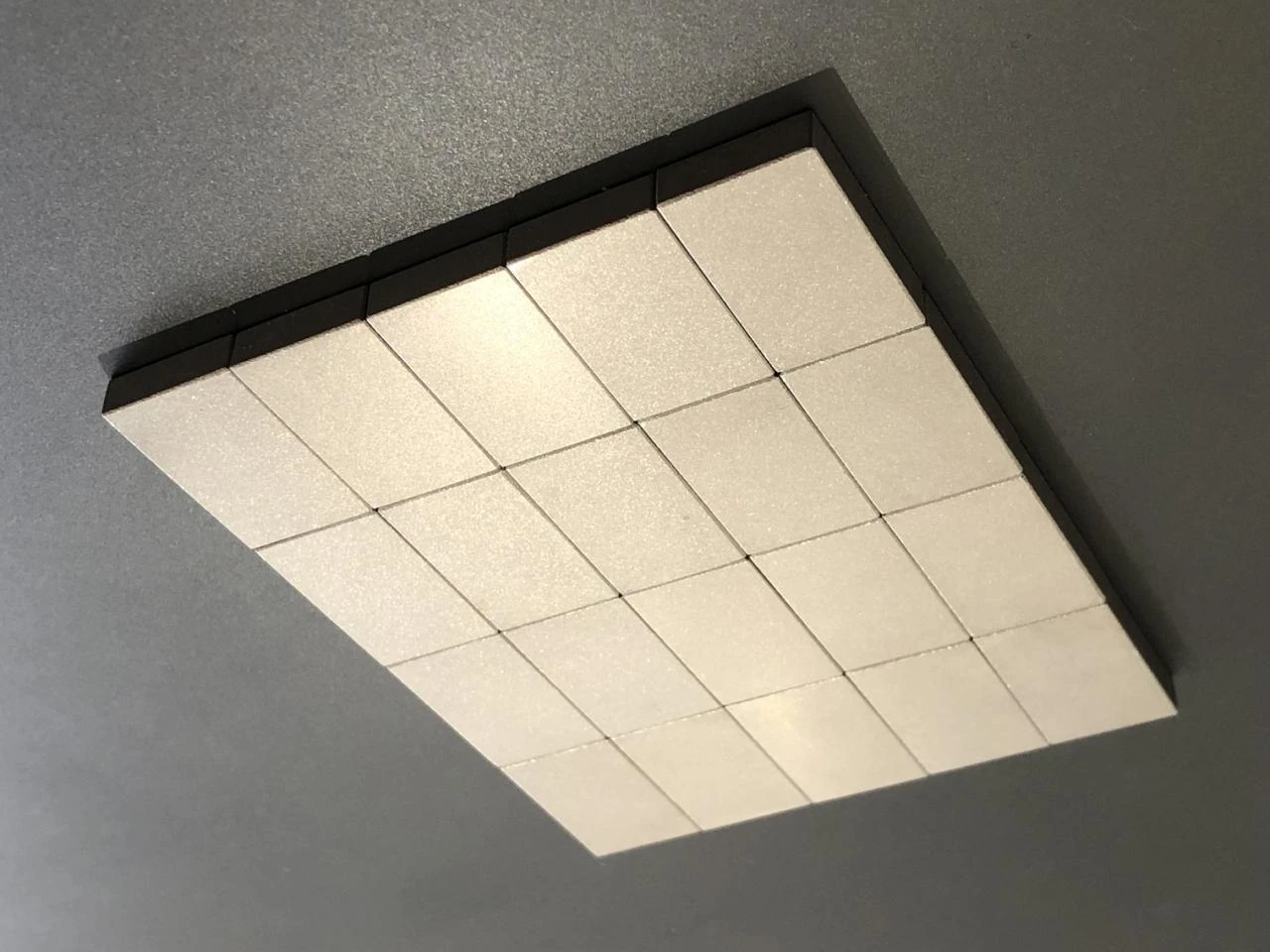

Thin plates

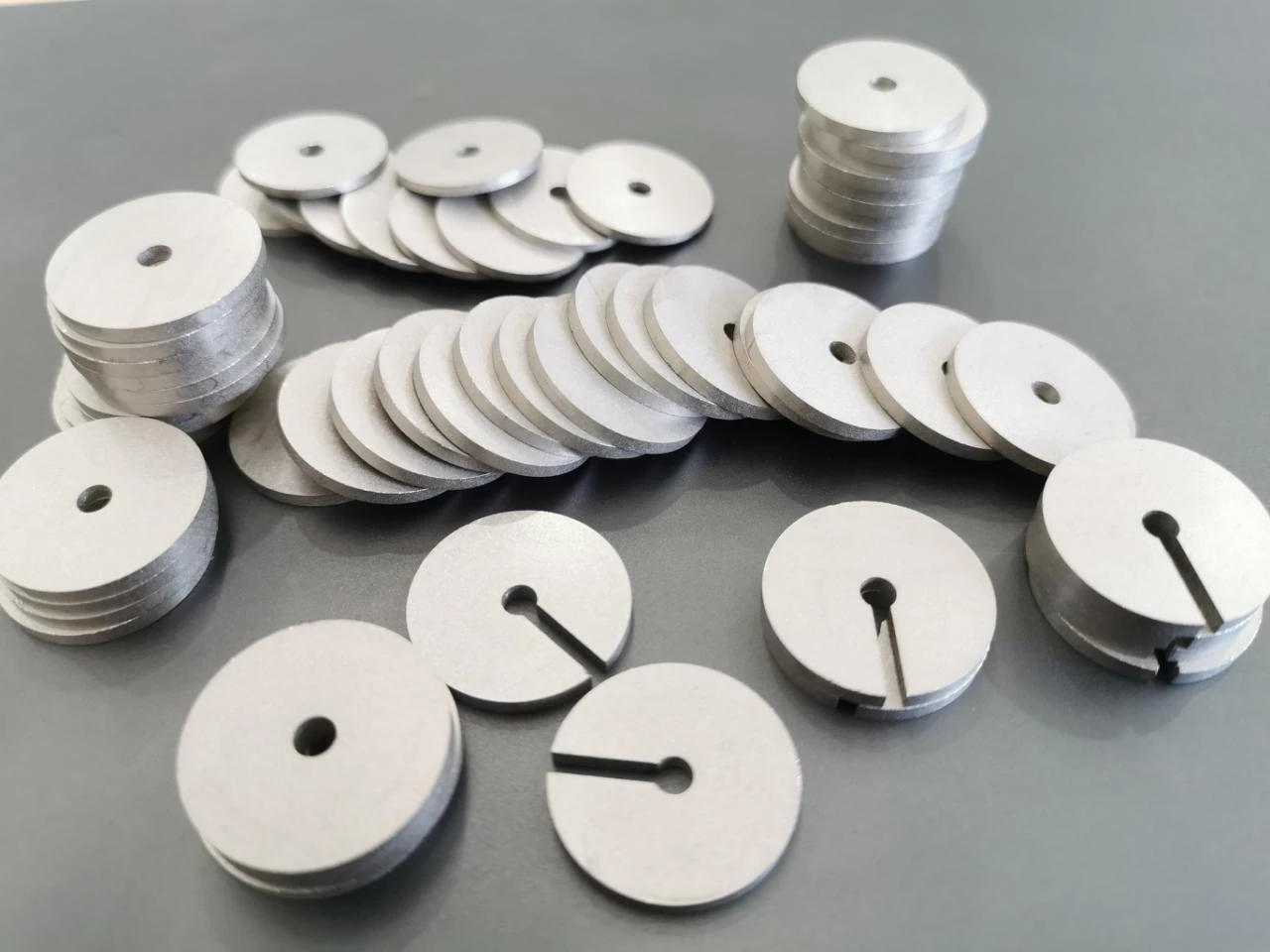

Slotted discs

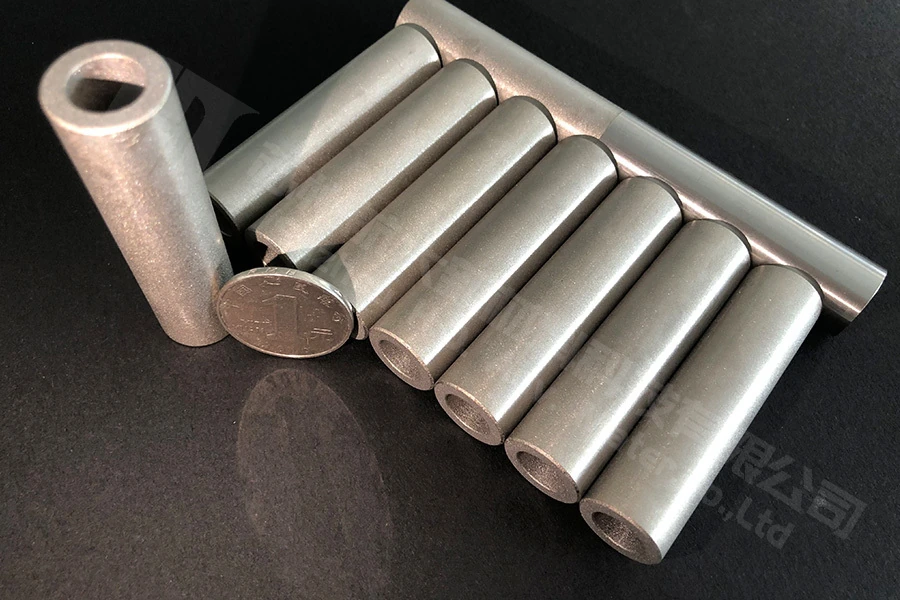

Tubular forms

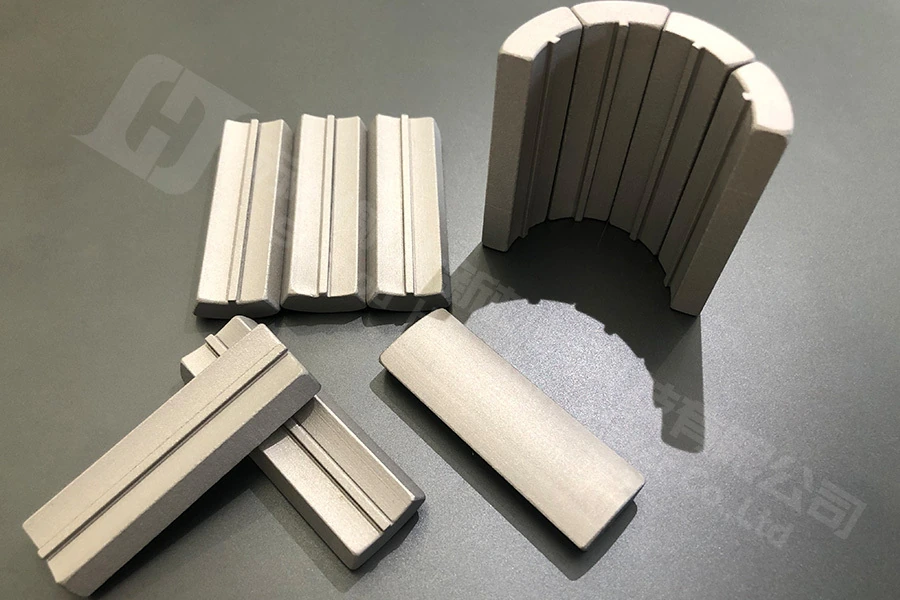

Profiled segments
Photographs show representative geometries, not a guarantee of a particular grade or dimensional tolerance.
Define a custom component
