SmCo / Product family
Temperature-compensated SmCo
XGS 22-TC-T350 / 18-TC-T500
Low-temperature-coefficient SmCo magnets for systems where magnetic-field stability matters. Published grades have a remanence temperature coefficient with a magnitude of 0.01%/°C.
Published material data
Grades and test conditions
Values apply at the stated test temperature. Scroll wide tables horizontally.Swipe the table sideways for all properties. The grade stays visible; each row has its own test temperature.
| Grade | Test temperature °C | Remanence, Br T | Intrinsic coercivity, Hcj kOe | Energy product, (BH)max MGOe | Published max. temperature °C |
|---|---|---|---|---|---|
| XGS 22-TC-T350 | 20 | 0.91–0.96 | ≥18 | 19–22 | 350 |
| XGS 18-TC-T500 | 20 | 0.85–0.91 | ≥18 | 16–18 | 500 |
Published maximum temperature is not a universal operating guarantee. Geometry, reverse field, load line and exposure conditions determine suitability. Br = remanence; Hcj = intrinsic coercivity, not Hcb.
Component examples
A material family. Multiple component forms.
Representative Hangda geometries; the grade, finish, dimensions and magnetic orientation are specified per project.
Slotted disc geometries
Drawing-defined features for precision-component development.

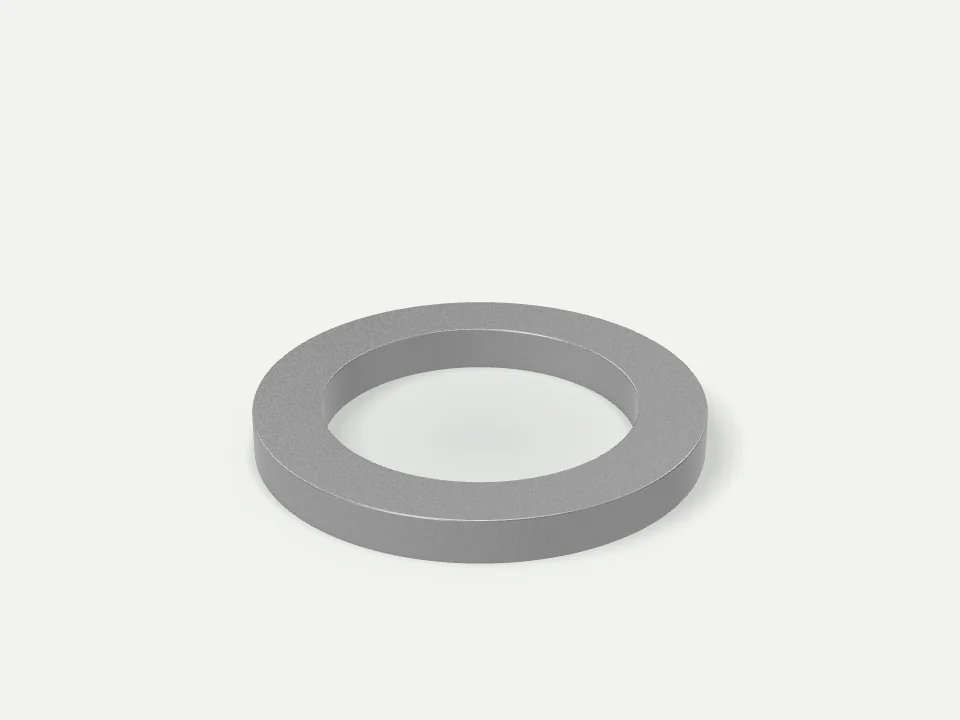

Ring and tubular forms
Discuss field distribution, temperature interval and permitted variation.

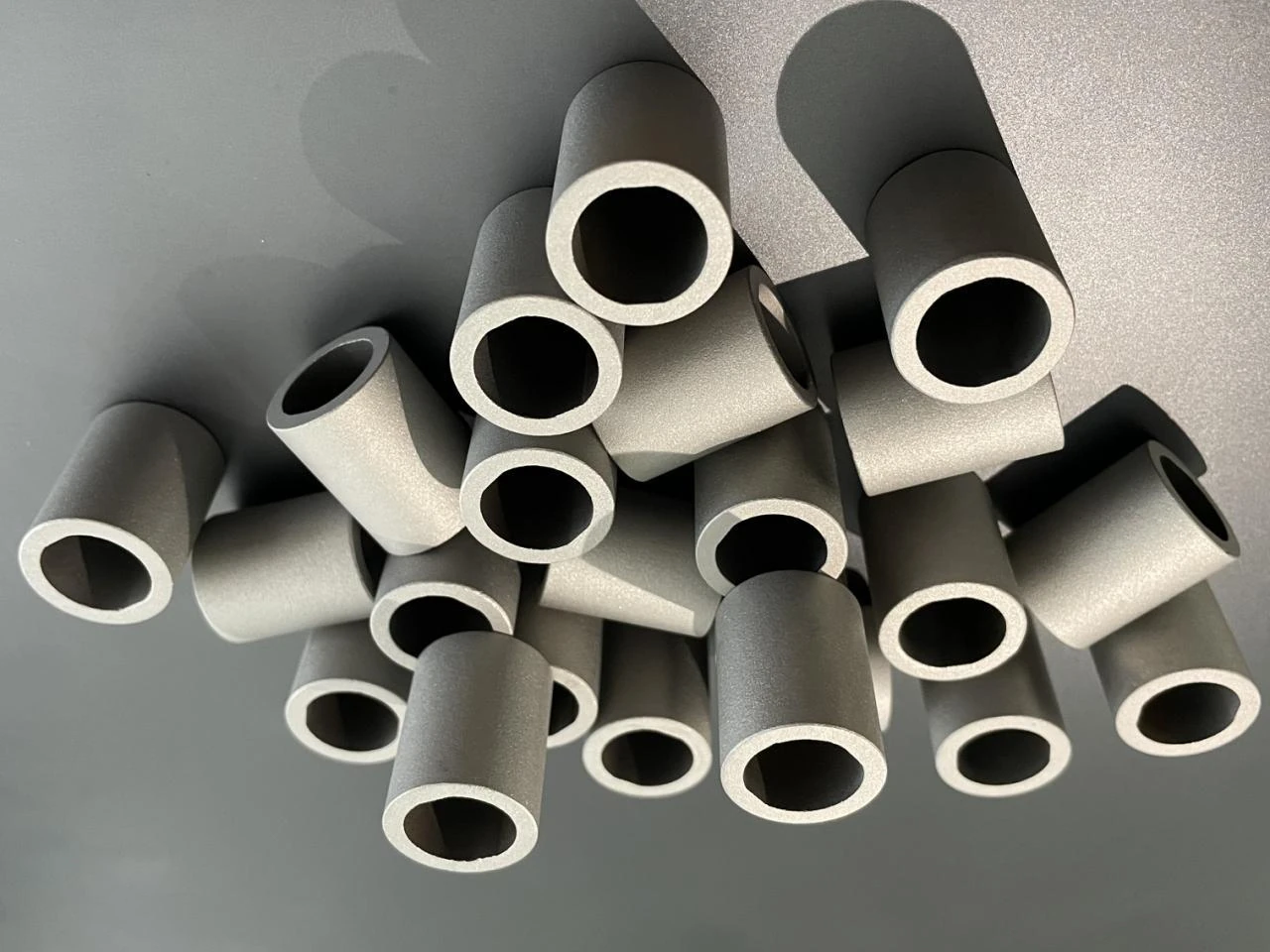

Tubular components
Define the bore, overall shape and required magnetic orientation.
Form / Representative geometry
A closer look
at the geometry.
Switch views to examine the form.
Define your component
Engineering review
Define the working point
Material, geometry, reverse field and thermal exposure must be reviewed together. Share your drawing and the operating conditions that determine the magnetic circuit.
- XGS 22-TC-T350: 19–22 MGOe at 20 °C
- XGS 18-TC-T500: 16–18 MGOe at 20 °C
- Remanence coefficient magnitude: 0.01%/°C
- Select the operating range with our engineering team
