SmCo / Product family
High-energy SmCo
XGS 35H / 34H / 33HA / 33HB
High-energy Sm₂Co₁₇ permanent magnets for compact motors, actuators and precision systems. The XGS H-series combines high remanence with intrinsic coercivity of at least 25 kOe at 20 °C.
Published material data
Grades and test conditions
Values apply at the stated test temperature. Scroll wide tables horizontally.Swipe the table sideways for all properties. The grade stays visible; each row has its own test temperature.
| Grade | Test temperature °C | Remanence, Br T | Intrinsic coercivity, Hcj kOe | Energy product, (BH)max MGOe | Published max. temperature °C |
|---|---|---|---|---|---|
| XGS 35H | 20 | 1.18–1.21 | ≥25 | 33–35 | 350* |
| XGS 34H | 20 | 1.16–1.20 | ≥25 | 32–34 | 350* |
| XGS 33HB | 20 | 1.14–1.16 | ≥25 | 31–33 | 350* |
| XGS 33HA | 20 | 1.13–1.15 | ≥25 | 30.5–32 | 350* |
| XGS 32H | 20 | 1.11–1.145 | ≥25 | 30–32 | 350* |
| XGS 30H | 20 | 1.08–1.12 | ≥25 | 28–30 | 350* |
Specification confirmation H-series maximum temperature differs between supplied documents: 350 °C in the grade table and 300 °C for XGS 35H in the English brochure. Request the current grade specification before design approval.
Published maximum temperature is not a universal operating guarantee. Geometry, reverse field, load line and exposure conditions determine suitability. Br = remanence; Hcj = intrinsic coercivity, not Hcb.
Component examples
A material family. Multiple component forms.
Representative Hangda geometries; the grade, finish, dimensions and magnetic orientation are specified per project.

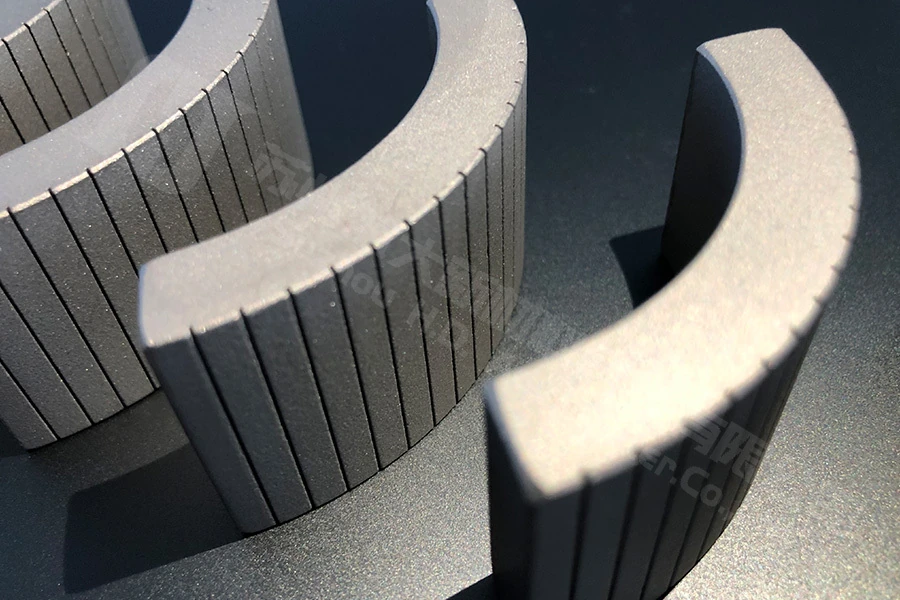

Segmented arc geometries
Discuss the arc profile, segment arrangement and rotor envelope.
Thin plate components
Define thickness, outline and dimensional acceptance in the drawing.

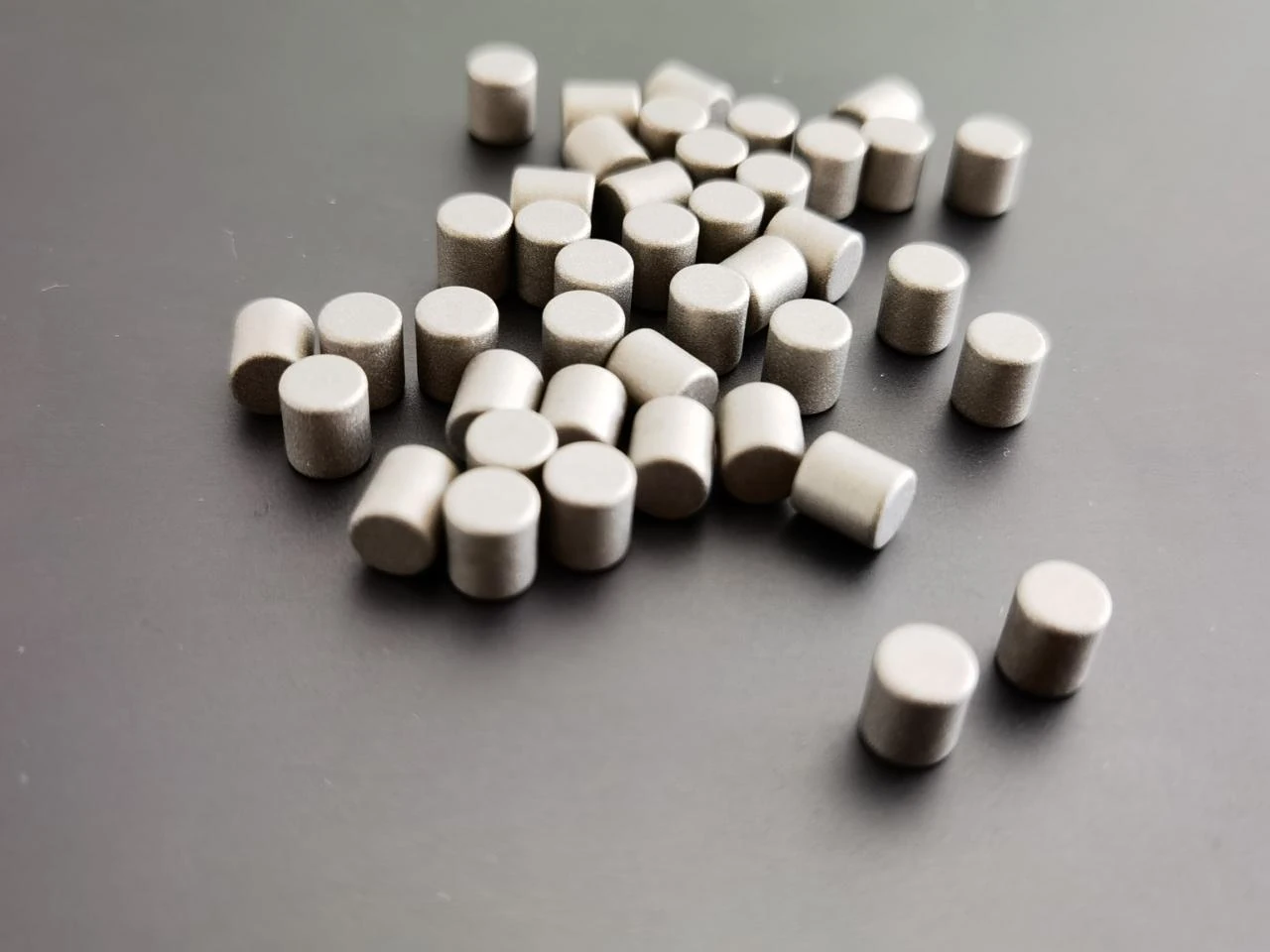

Compact cylindrical magnets
Specify magnetic orientation and the required output at the working point.

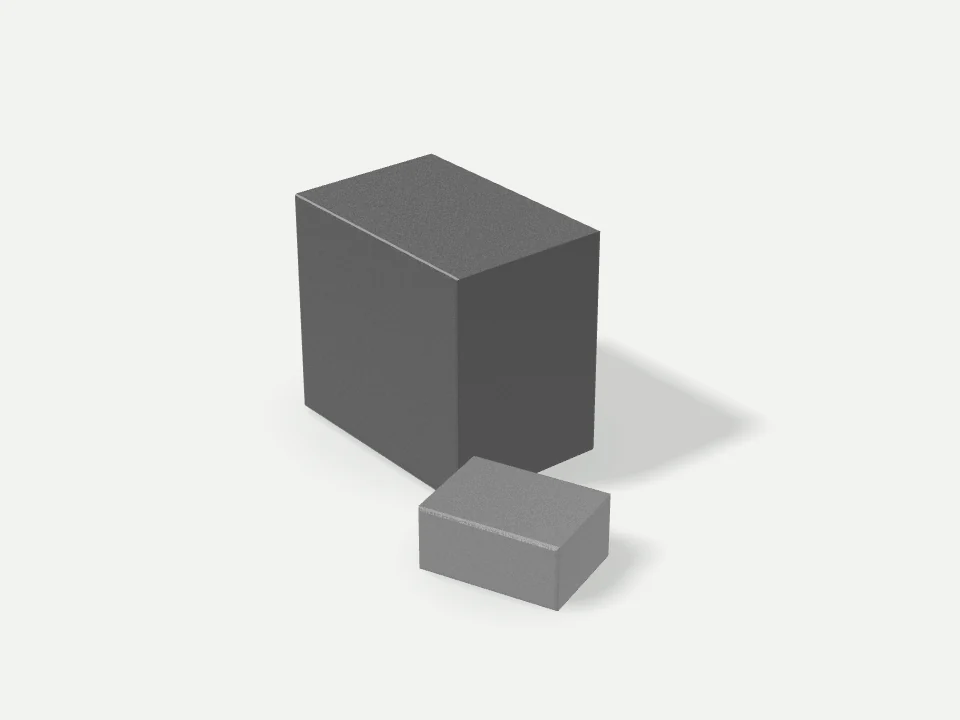

Form / Representative geometry
A closer look
at the geometry.
Switch views to examine the form.
Define your component
Engineering review
Define the working point
Material, geometry, reverse field and thermal exposure must be reviewed together. Share your drawing and the operating conditions that determine the magnetic circuit.
- XGS 35H: Br 1.18–1.21 T at 20 °C
- XGS 35H: (BH)max 33–35 MGOe at 20 °C
- H-series intrinsic coercivity ≥25 kOe at 20 °C
- Blocks, arcs, rings and drawing-based geometries
Application evaluation
