SmCo / Product family
High-temperature SmCo
XGS 26-T550 / 25-T500
Specialist samarium cobalt grades for high-temperature environments. XGS 26-T550 and XGS 25-T500 have separate published magnetic properties at room temperature and at their rated elevated temperatures.
Published material data
Grades and test conditions
Values apply at the stated test temperature. Scroll wide tables horizontally.Swipe the table sideways for all properties. The grade stays visible; each row has its own test temperature.
| Grade | Test temperature °C | Remanence, Br T | Intrinsic coercivity, Hcj kOe | Energy product, (BH)max MGOe | Published max. temperature °C |
|---|---|---|---|---|---|
| XGS 26-T550 | 20 | 0.93–1.02 | ≥25 | 23–26 | 550 |
| XGS 26-T550 | 550 | 0.65–0.76 | 5.0–8.0 | 9–11 | 550 |
| XGS 25-T500 | 20 | 0.95–1.03 | ≥25 | 22–25 | 500 |
| XGS 25-T500 | 500 | 0.65–0.80 | 6.6–9.0 | 10–13 | 500 |
Published maximum temperature is not a universal operating guarantee. Geometry, reverse field, load line and exposure conditions determine suitability. Br = remanence; Hcj = intrinsic coercivity, not Hcb.
Component examples
A material family. Multiple component forms.
Representative Hangda geometries; the grade, finish, dimensions and magnetic orientation are specified per project.

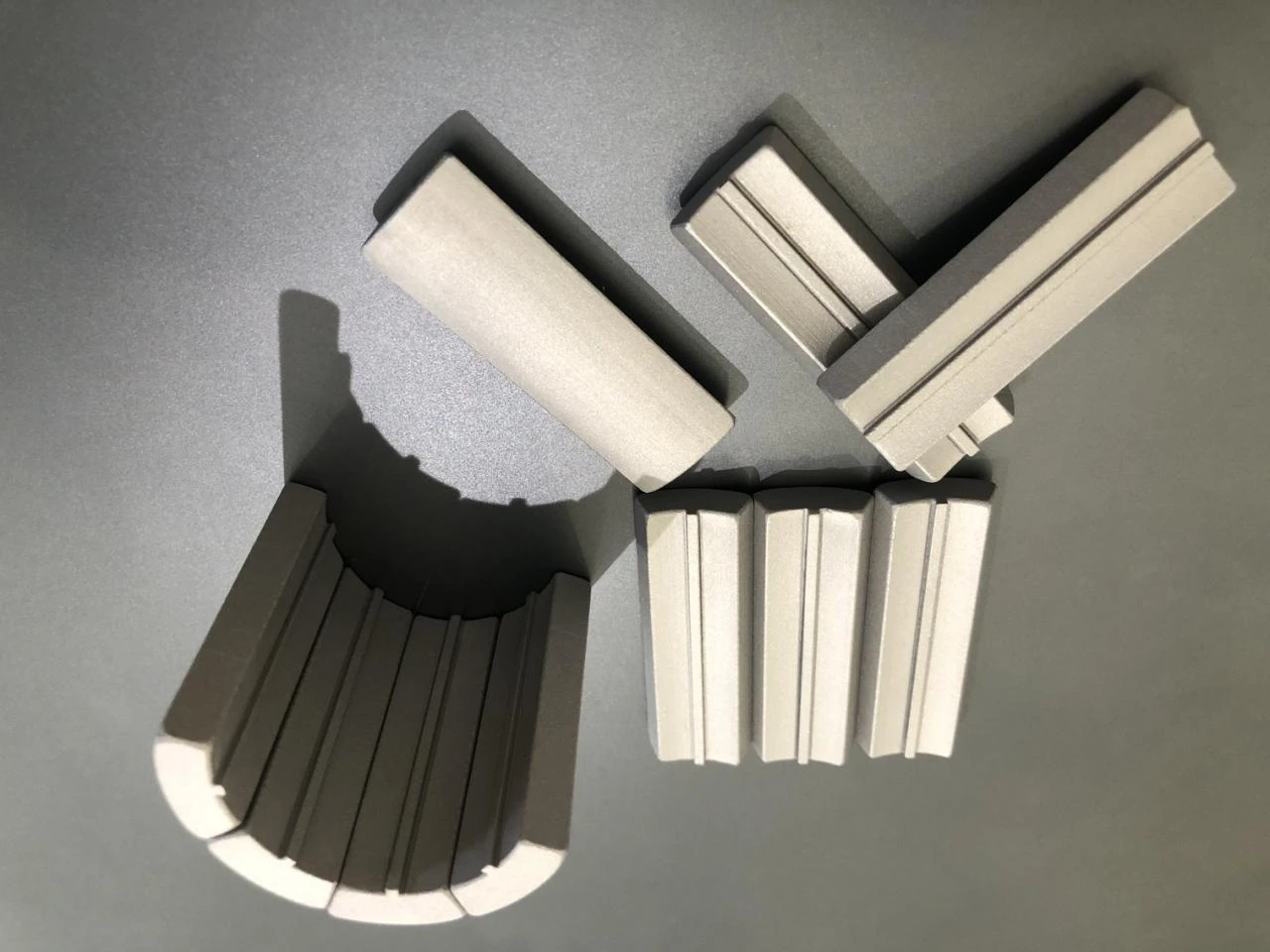

Arc and segment components
Thermal exposure and reverse field are reviewed for the intended circuit.

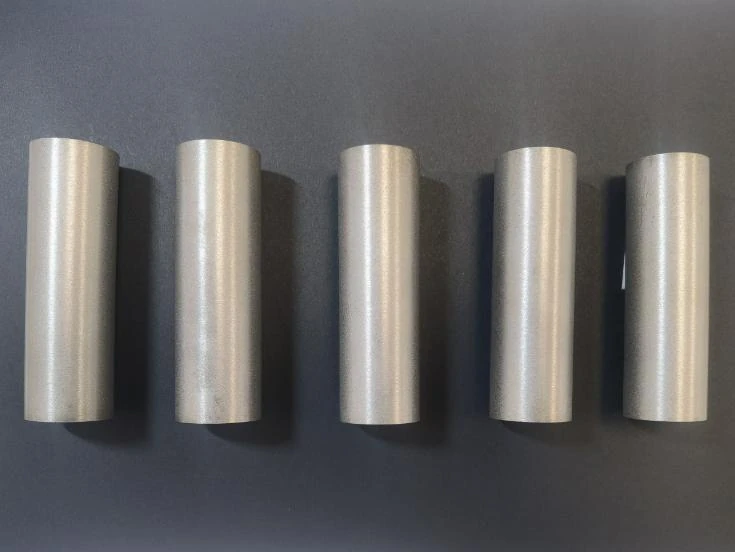

Cylindrical forms
Discuss the grade, component geometry and hot-condition measurement.

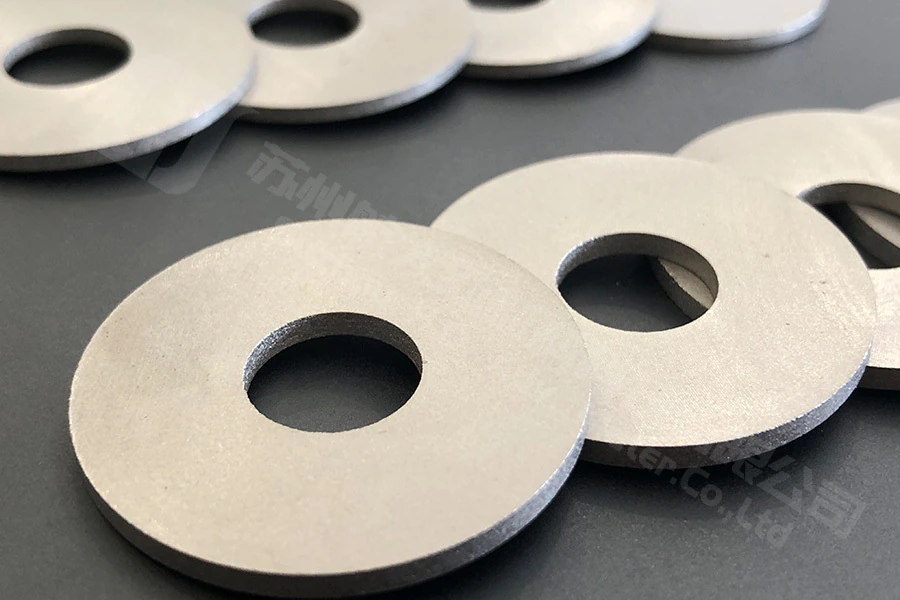

Ring-shaped components
Agree the drawing, magnetic orientation and inspection method.

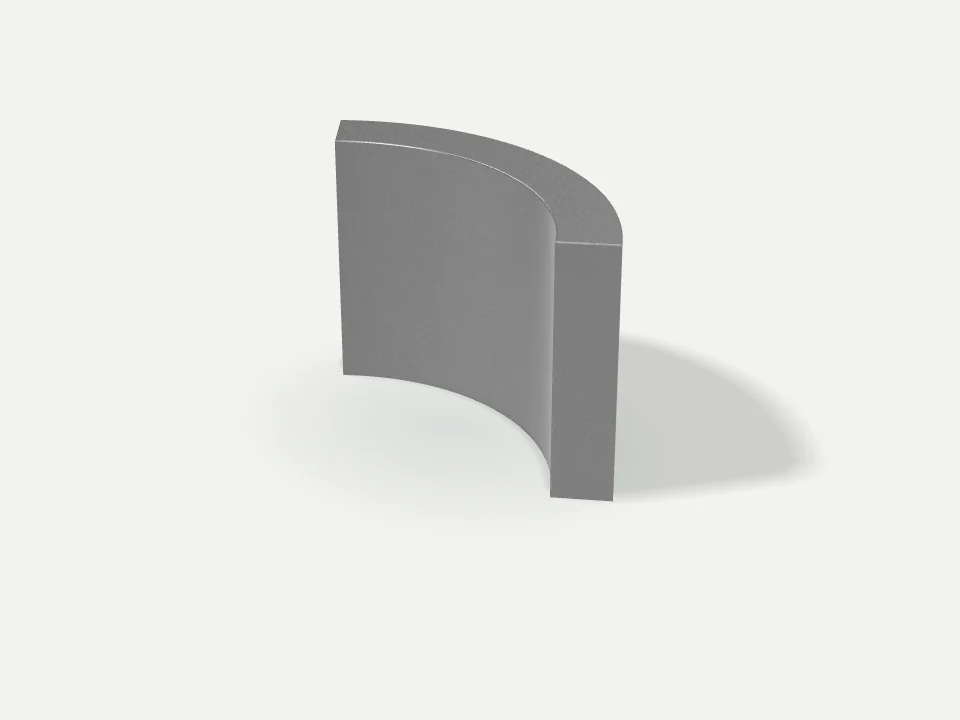

Form / Representative geometry
A closer look
at the geometry.
Switch views to examine the form.
Define your component
Engineering review
Define the working point
Material, geometry, reverse field and thermal exposure must be reviewed together. Share your drawing and the operating conditions that determine the magnetic circuit.
- XGS 26-T550: 23–26 MGOe at 20 °C
- XGS 26-T550: 9–11 MGOe at 550 °C
- XGS 25-T500: 22–25 MGOe at 20 °C
- Application-specific thermal stabilization and validation
Application evaluation
